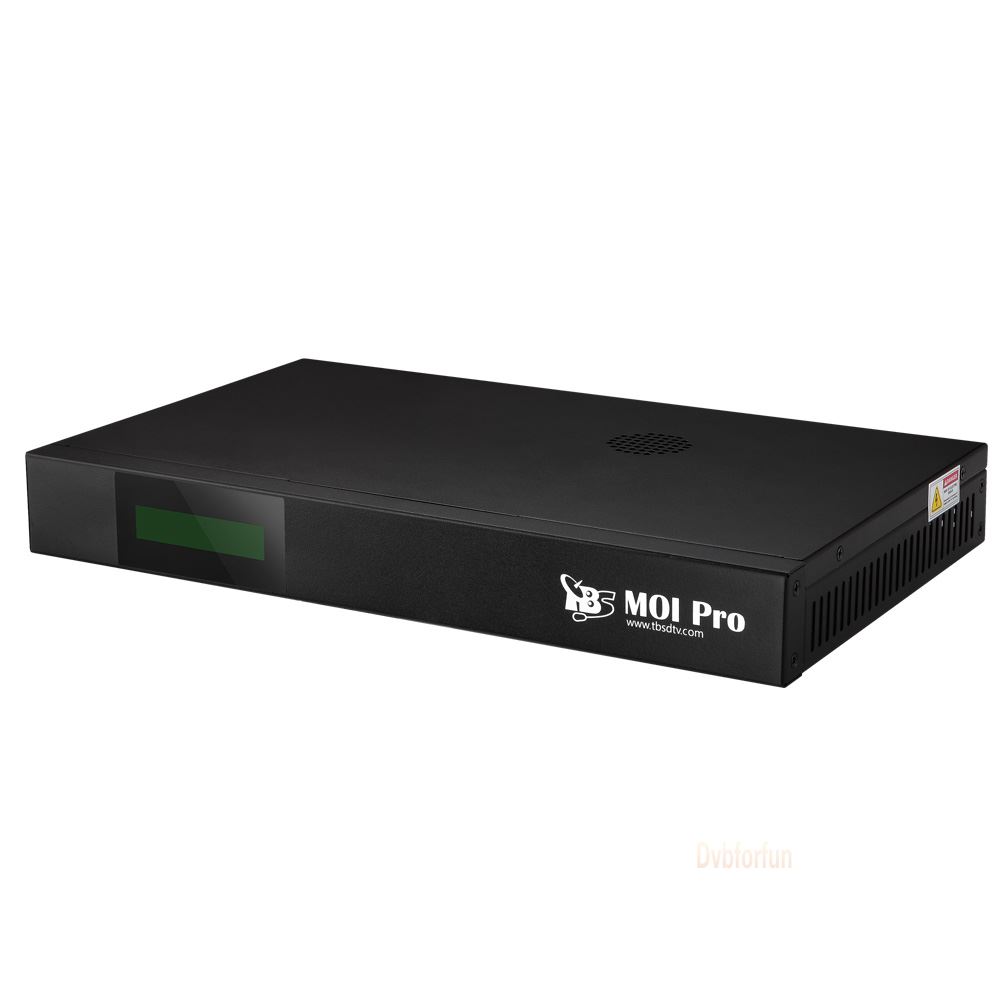

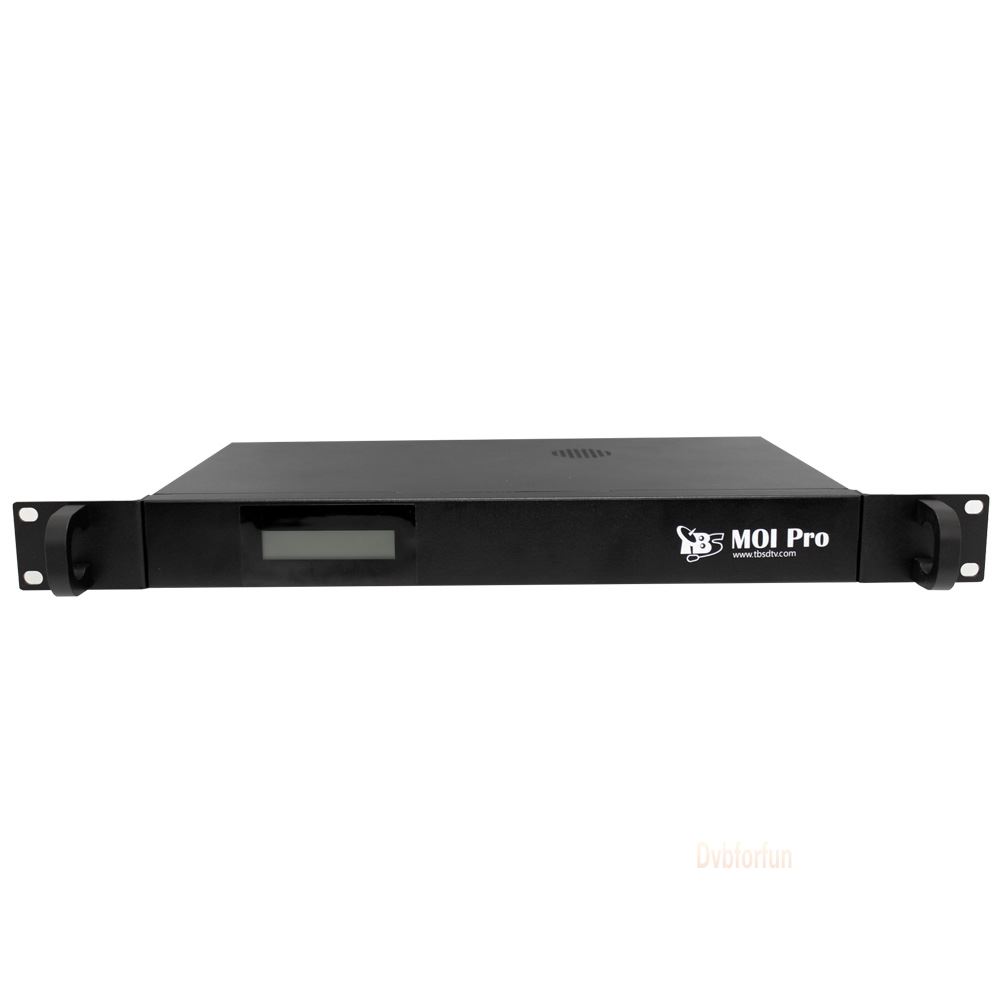

MOI Pro DVB IPTV Streaming Server
DESCRIPTION

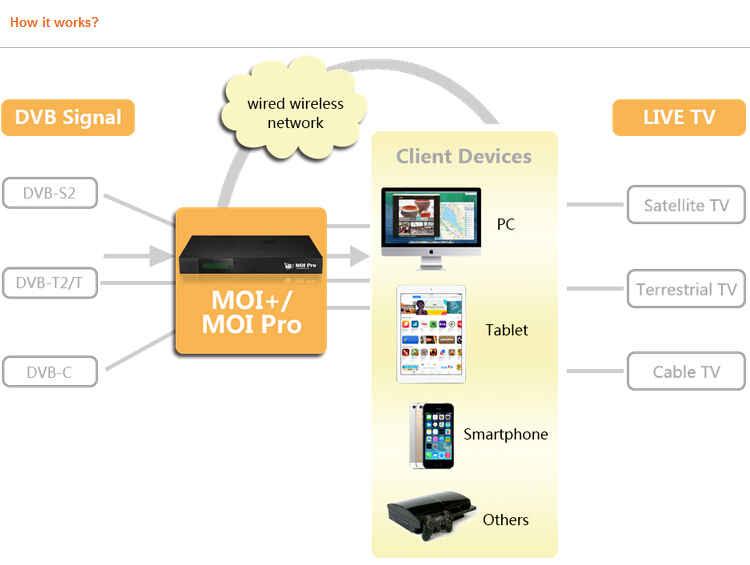

MOI Pro is a Linux based IP streamer powered by Freescale, with DVB tuners integrated, it can receive Live digital TV or radio contents- both FTA (Free to Air) channels and Pay TV (encrypted) channels, and further stream them to the following client devices: PC, Tablet, Smartphone , iDevices (iPhone, iPad, iPod) or Sony Playstation 3.
As a professional streaming server, MOI Pro supports connection with up to 2 DVB PCI Express tuner cards through the tuner bridge board, which allows it to receive a lot more live TV/ radio channels, for example, connected with 2 quad tuner cards, it can receive a large number of live TV channels from 8 transponders, it’s ideal for industrial use, especially for IPTV projects based on high performance backend. With the preinstalled DVB software, such as MuMudvb, Tvheadend, DVBlast, szap, tzap ,czap etc., you are ready to build a professional streaming server.
MOI Pro provides an open solution with flexibility and variety as well, DVB-S2 tuner, DVB-T2/T tuner, or DVB-C tuner are available for you to choose to build your IPTV streaming server, with or without CI function is entirely up to you.
System：
SoC: Freescale MCIMX6Q5EYM10AC
CPU: Quad ARM Cortex-A9 at 1.0GHz
RAM: 2GB DDR3
GPU: Vivante GC2000, Quad core GPU, Quad IPU
Flash: 16G EMMC

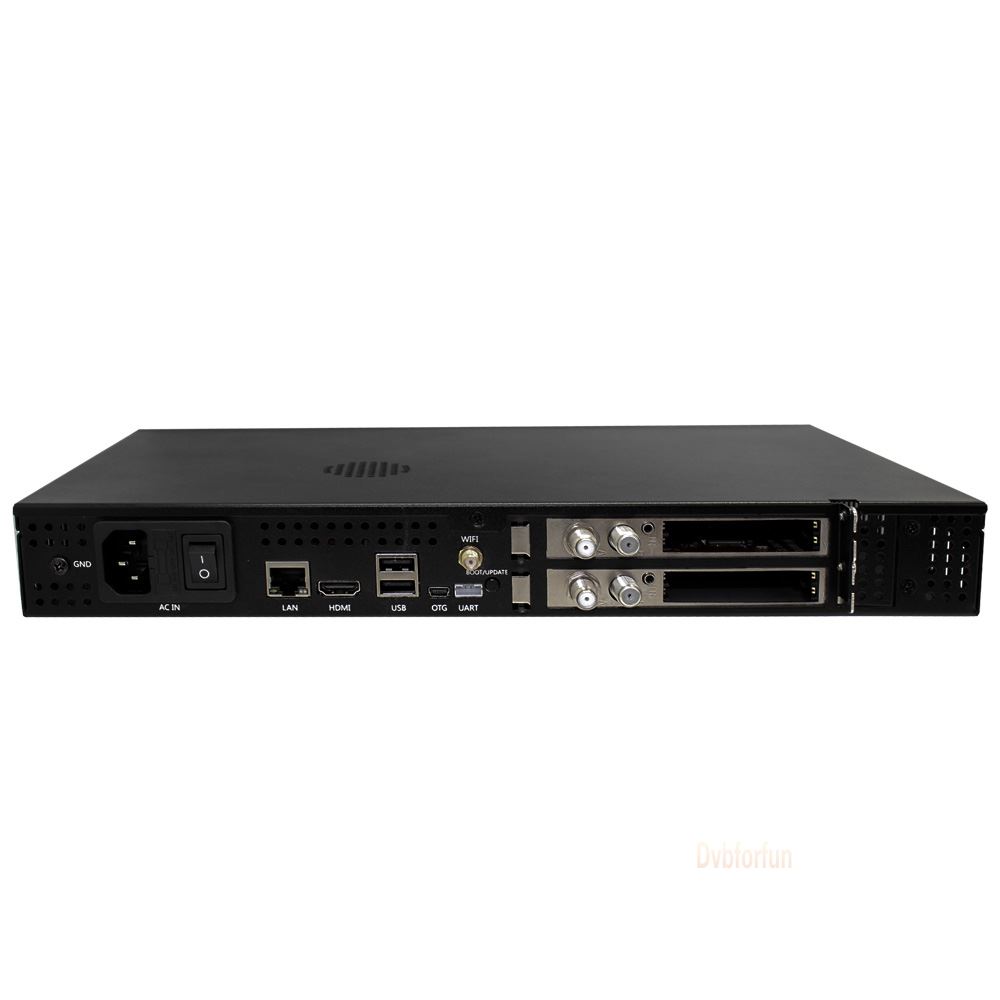

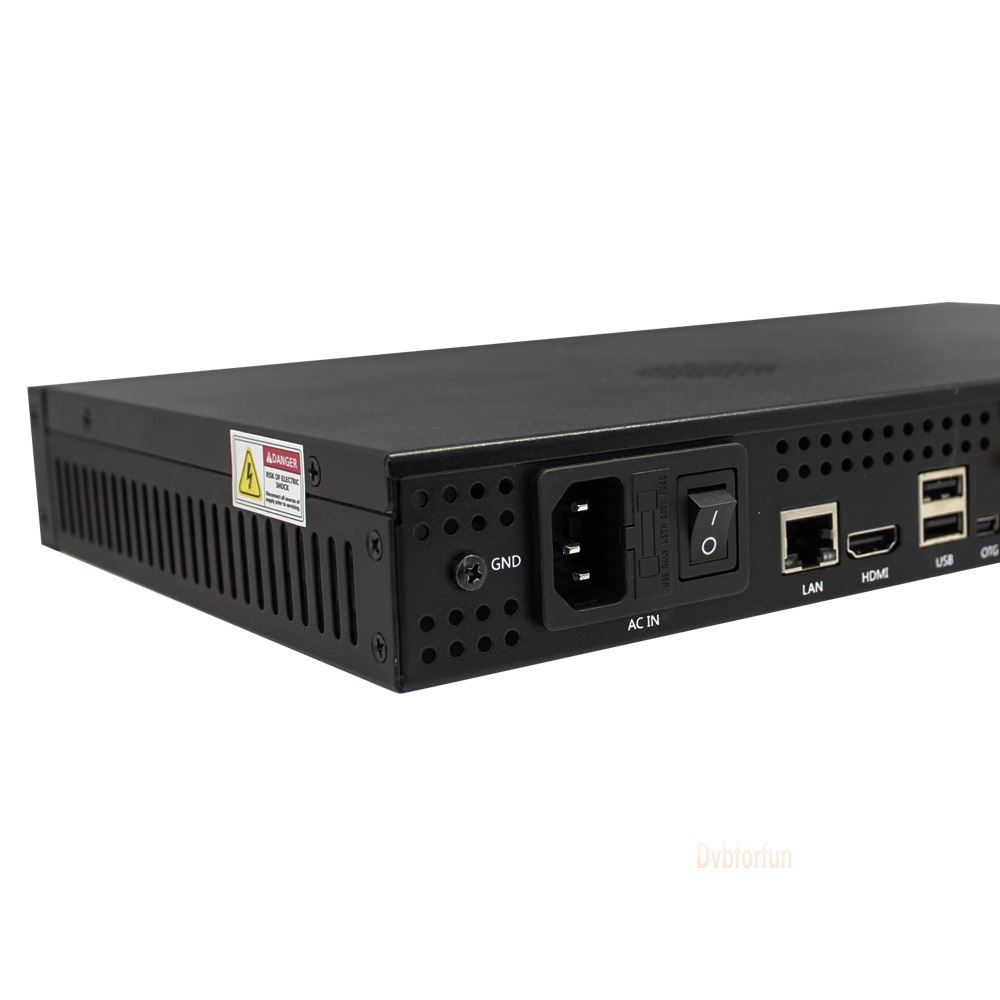

Interface：
2x USB 2.0
1x SATA port
1x HDMI port
Ethernet: 100/1000M Gigabit Ethernet
Wifi: 802.11n
Protocol: HTTP, UDP, RTP, TCP
OS: Linux
2x PCI-E 2.0 (internal)
Preinstalled software：
Tvheadend, VDR, Mumudvb, DVBlast, szap-s2,
dvbdate,dvbscan,dvbdstream,dvbsnoop,
scan-s2,szap-s2,tzap-t2,LIRC,
telnet, ssh, ftp, samba, oscam
Client end support：
PC: Windows, Linux, Mac
Tablet: Android, iOS
Smartphone: Android, iOS
DVB tuner support：
DVB-S2/S: up to 8 tuners
DVB-T2/T: up to 8 tuners
DVB-C: up to 8 tuners
Package contents:
1x MOI Pro DVB IPTV Streaming Server
1x Power cable
1x Network cable
1x Wifi antenna
1x Mounting bracket set
Weight: 4000g
Only Shipping by express
Note： MOI Pro can have up to 2 DVB tuner cards connected inside, you can choose 2 cards from the table below, here we offer only a few popular combinations of DVB tuner cards, if you need other combinations, please contact us.
Which DVB tuner card to use
| PCIe Tuner | MOI + | MOI Pro | |
| + DVB-S2 Tuner | TBS6922SE | yes | yes |
| TBS6925 | yes | yes | |
| TBS6982 | yes | yes | |
| TBS6983 | yes | yes | |
| TBS6984 | yes | yes | |
| TBS6985 | yes | yes | |
| TBS6928 | yes | yes | |
| TBS6928SE | yes | yes | |
| TBS6991SE | yes | yes | |
| + DVB-T2/T/C Tuner | TBS6221 | yes | yes |
| TBS6281 | yes | yes | |
| TBS6285 | yes | yes | |
| TBS6290 | yes | yes | |
| + DVB-C Tuner | TBS6618 | yes | yes |
| TBS6680 | yes | yes | |
-step 1. choose DVB standard:
-You need to know what DVB standard(s) can be used in your region, for example, if you are located in Germany, you can use DVB-S2 for satellite TV, if you live in the UK, you probably want to use DVB-T2/T for terrestrial TV (Freeview).
--step 2. choose a tuner card:
-After you decide for a DVB standard, for example DVB-S2, there are a few cards to choose from – single, dual or quad tuner card, tuner card with or without CI slot. If you are going to build a streaming server system and need encrypted TV channels, it’s recommended to use the dual tuner dual CI card TBS6991SE. If you need only FTA (free to air) channels, you can use the TBS6991SE, TBS6982 or TBS6985.
