Feature:

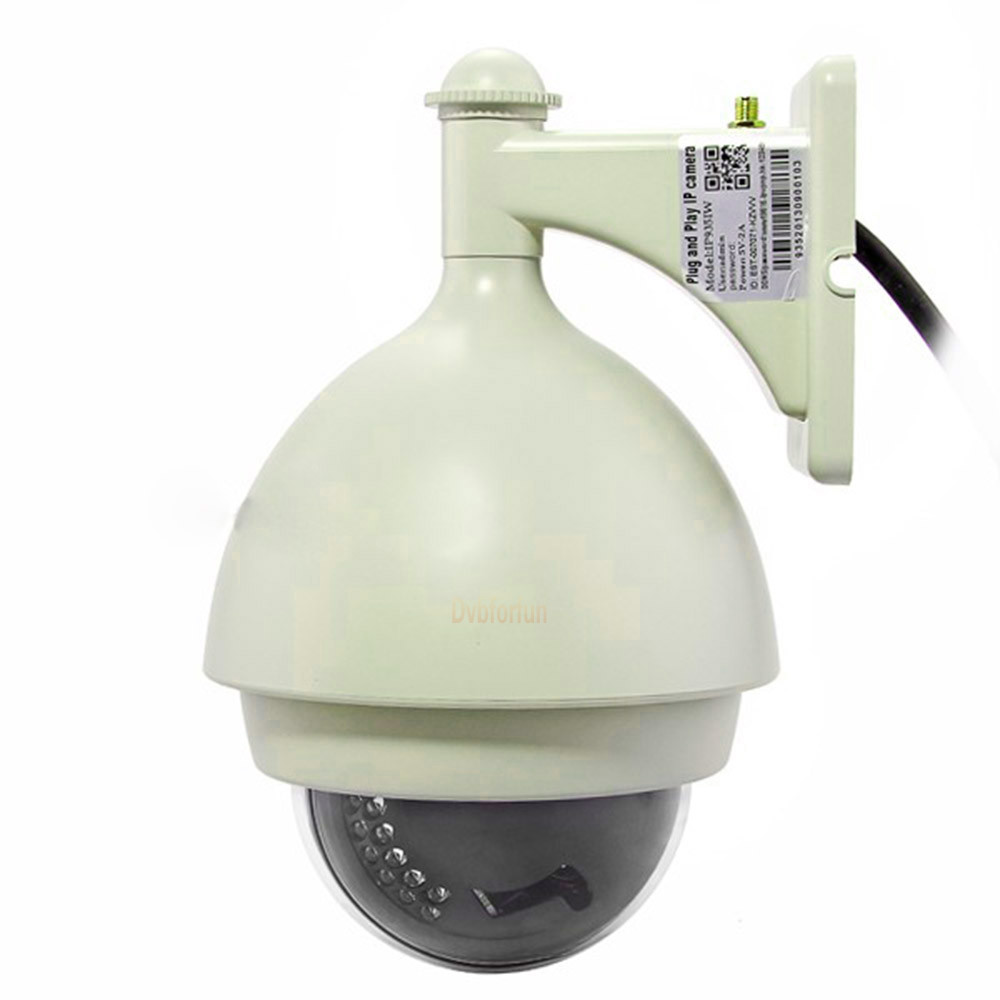

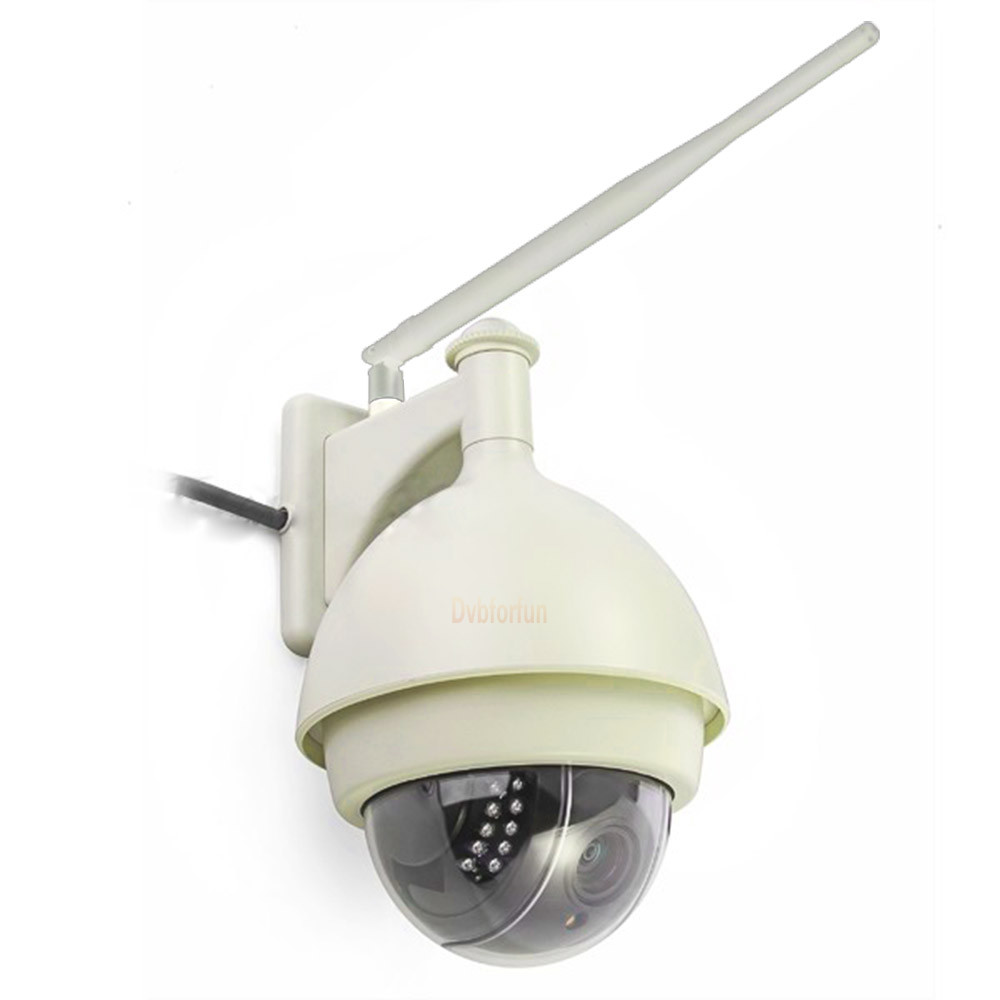

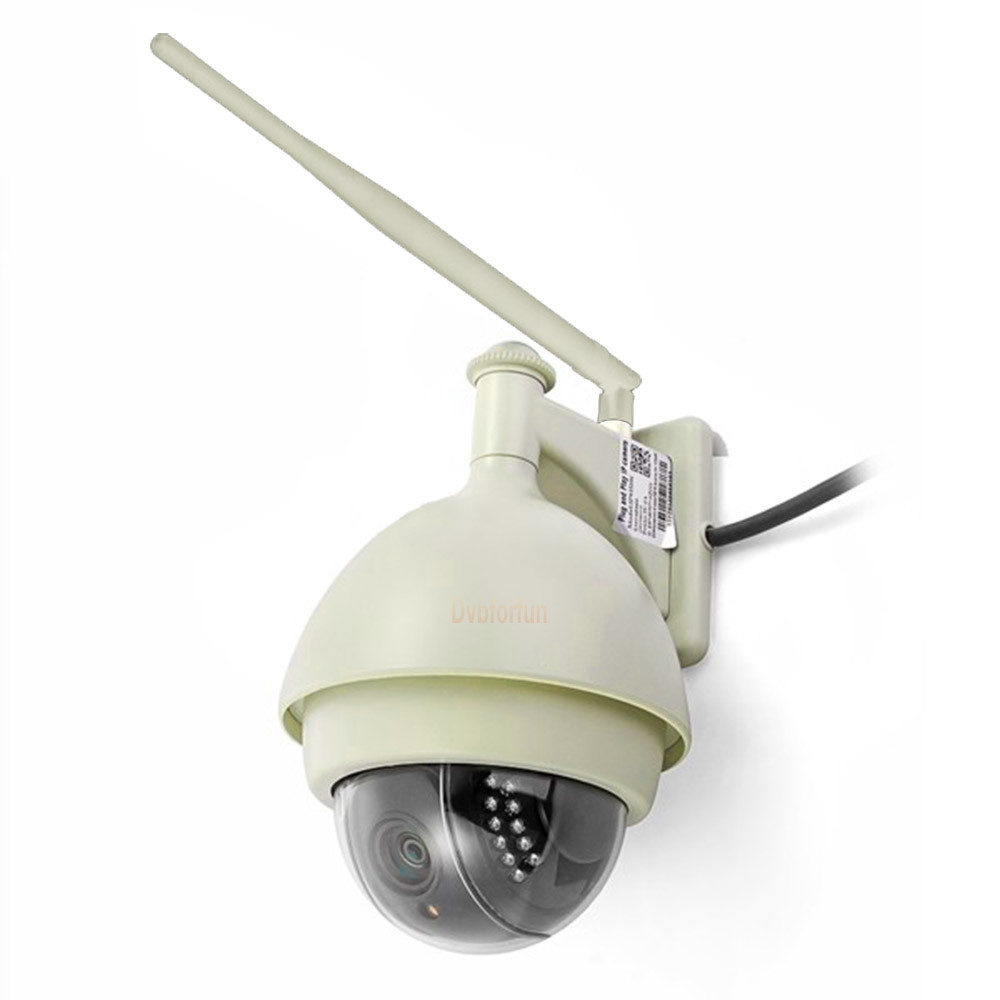

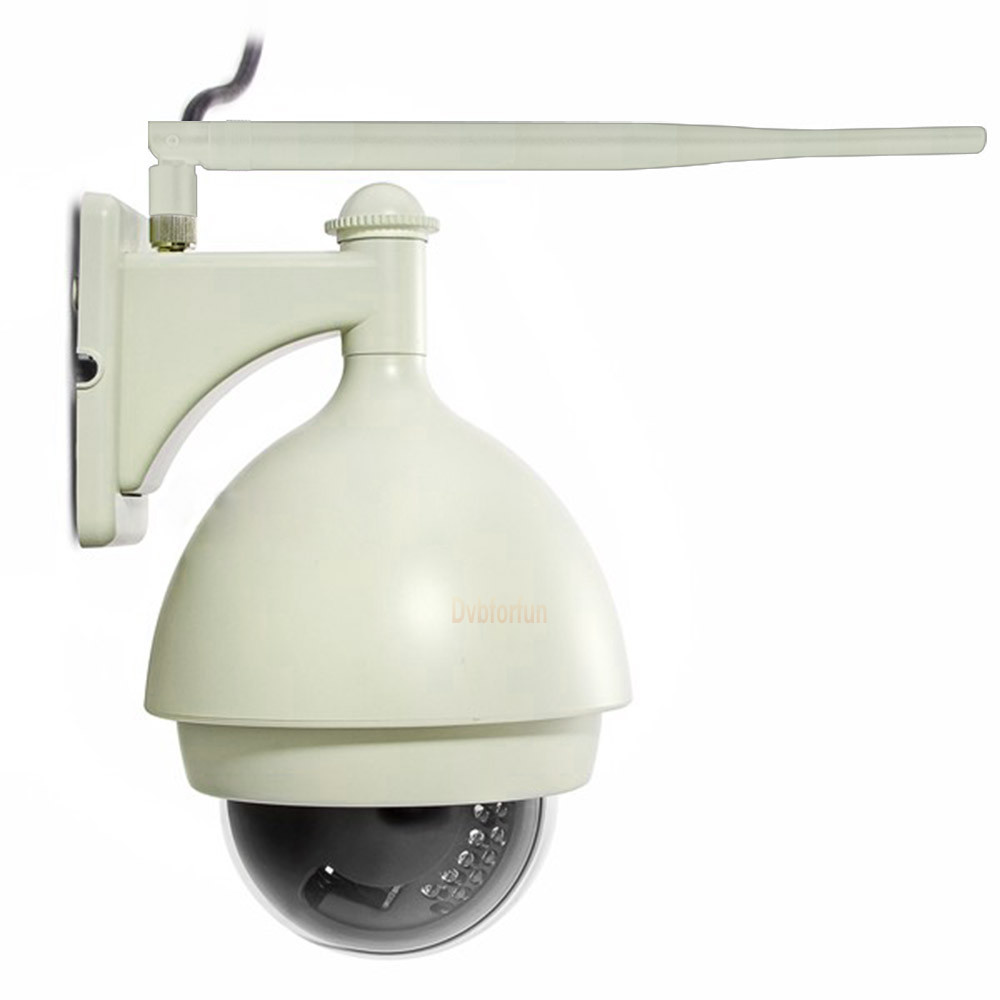

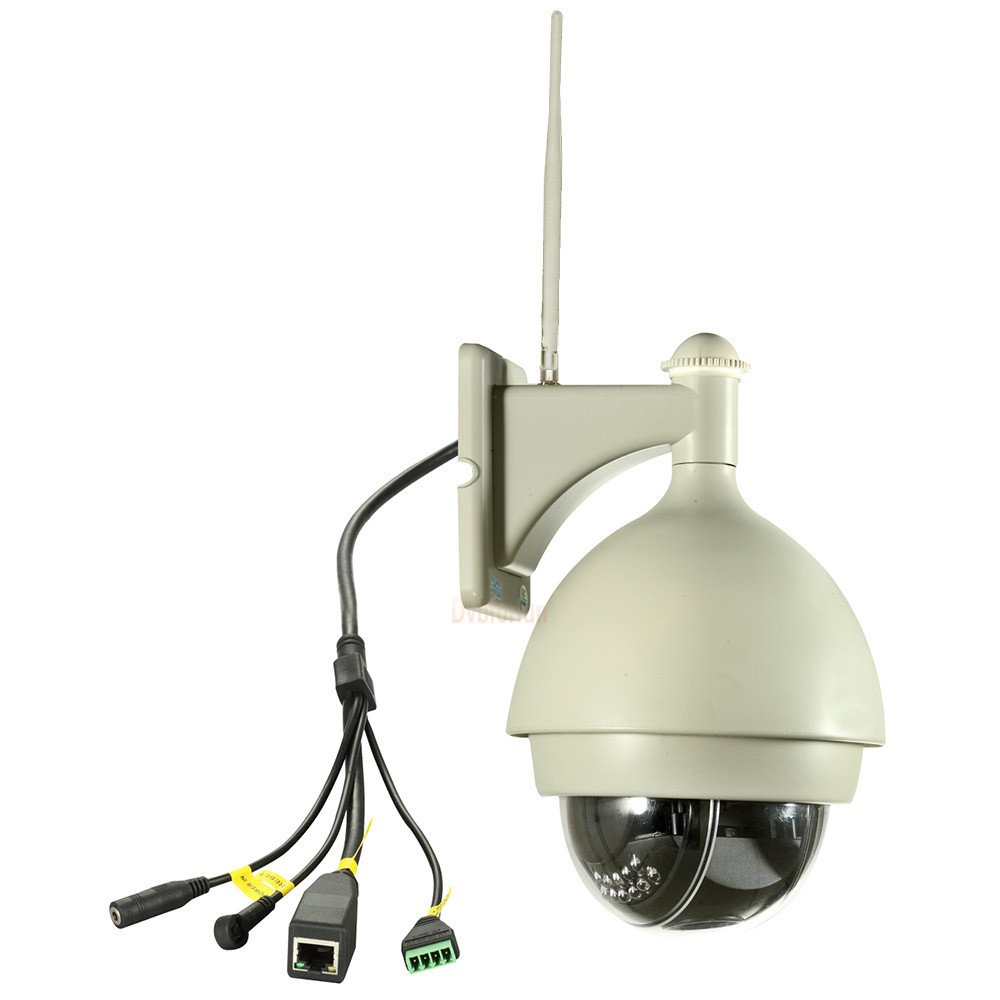

1. Outdoor PTZ Dome IP Camera,

2. Video compression format: H.264/JPEG。

3. Adopt 1 Megapixel CMOS sensor, support resolution: 720P (1280 * 720) (640 * 480) / (320 * 240)

4. Support dual-stream (H.264 and M-JPEG), the image is more clear and fluent, support local, remote, cross-regional viewing.

5. 4-9mm Zoom Lens, 22 Ф5 IR LED(15-20m night vision distance),

6. Support Micro SD card (Max 32G) For storage of photos and videos.

7. Support the IR-CUT,which is infrared light automatically switching function, the color of objects without distortion , color cast when viewing.

8. Support WIFI function.

9. Support UPNP(plug and play) function.

10. Support IR LED for night viewing ,  distance 15-20 meters, 24-hour uninterrupted monitoring .

11. Built - in PTZ rotating function, horizontal ( 355 degree ) / vertical ( 90 degrees ) , adjustable speed 15 - 70 degree / sec.
    (Different Measurement methods, there may be errors of about 15 degrees)

12. Support Android, Apple mobile phone client software( H.264 format, the image is more fluent).

13. Support remote viewing video, can be recorded through a network connection.

14. Adopt Multi-level user management and password management

15. Support TCP/IP、HTTP、SMTP、RTSP、FTP、DHCP、DDNS、NTP Protocols.

16. Support motion detection alarm function , support for external input , output alarm ,support email alarm and FTP upload.

17. Adopt TCP/IP protocol and built-in Web Sever.

18. Support 1,4,9,16,25,36,64 channel video viewing, support record, alarm, remote playback, records and other management functions.

19. Free centralized monitoring software provided by manufacturer. Support multi-screen, long-time recording and video playback.



    TBS3022
    Specification
    Language	English, Simplified Chinese
    Appearance	Color	White
    	Dimension(mm)	**x**x**
    	IR led	15-20 meters with 22 Ф5 IR LED
    Sensor	image sensor	MegaPixel 1/4 CMOS Sensor
    	minimum illumination	IR LED ON, 0.1 Lux
    	Lens	f=4-9MM
    	IR CUT	Double switch filters
    PT	Pan/tilt	Pan:355°Tilt:90°
    video	Resolution	H264:1280*720/640*480/320*240/；MJPEG：640*480/320*240
    	Video compression format	H.264/JPEG
    	Maximum frame rate	30fps/second(720P 25fps/second)
    	code	128kbps ~ 4.096Mbps
    	Reverse	Vertical and Horizontal
    Network	Basic Protocols	TCP/IP、HTTP、SMTP、RTSP、FTP、DHCP、DDNS、UPNP、NTP
    720	other protocols	802.11b/g/n
    Other features	Mobile phone view	Support Android mobile phones and iPhone view
    	Video control	support
    	SD card storage	SD card can storage the capture pictures and video, also remote browser and download the SD card content
    	Triggered Actions	Email / FTP / SD storage / send message to the alarm server
    	User setting	The third level user permission
    	Time/ Date setting	support
    	upgrade	upgrade through the network
    	DDNS domain	support the customer's own application DDNS domain

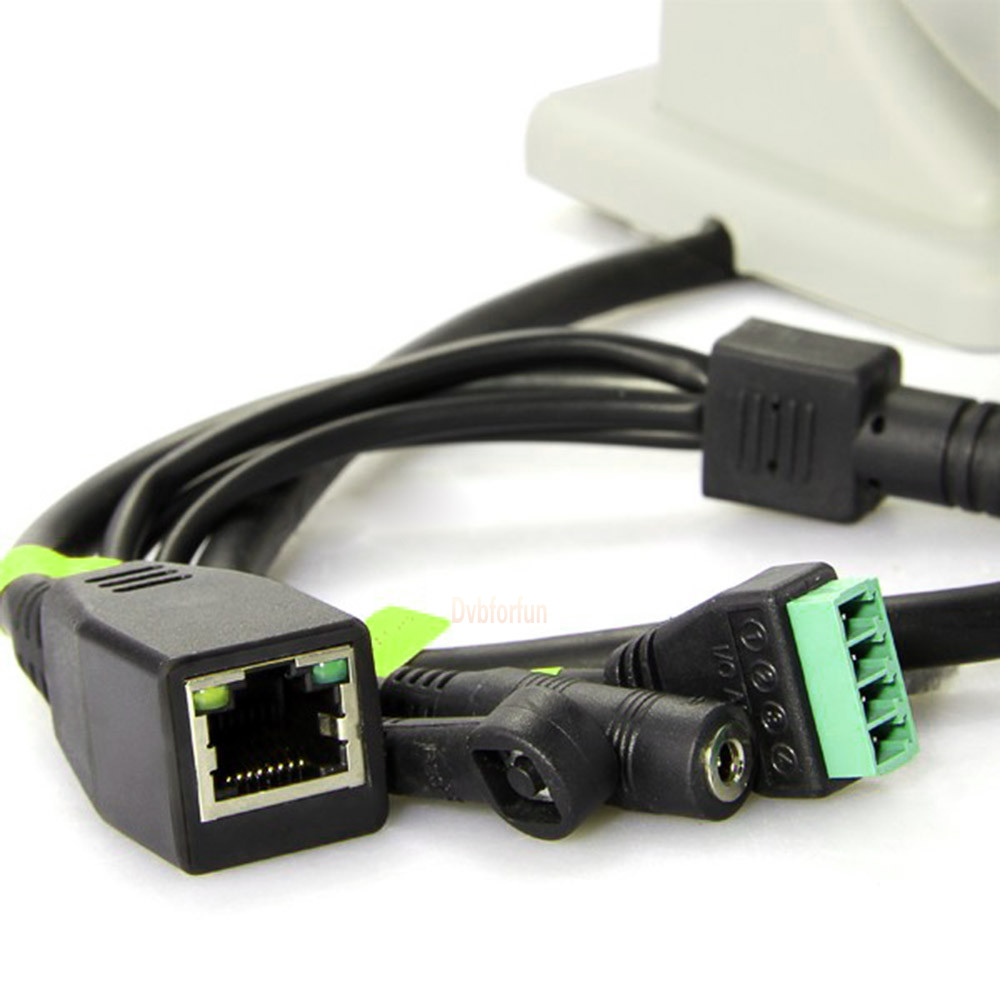

    Hardware interface	Ethernet interface	10Base-T/100base-TX

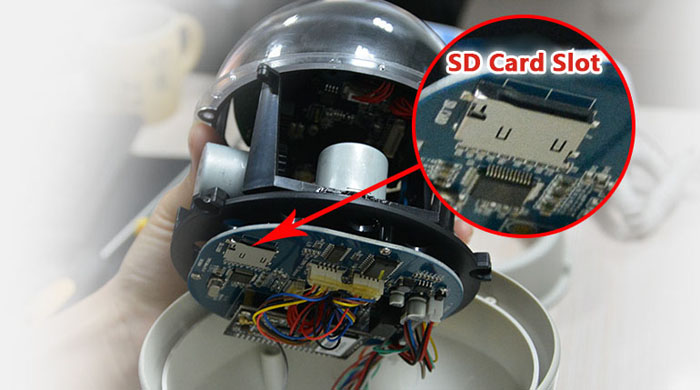

    	Storage interface	SD card slot
    	Power adaptor	DC 5V
    	Power consumption	<6W

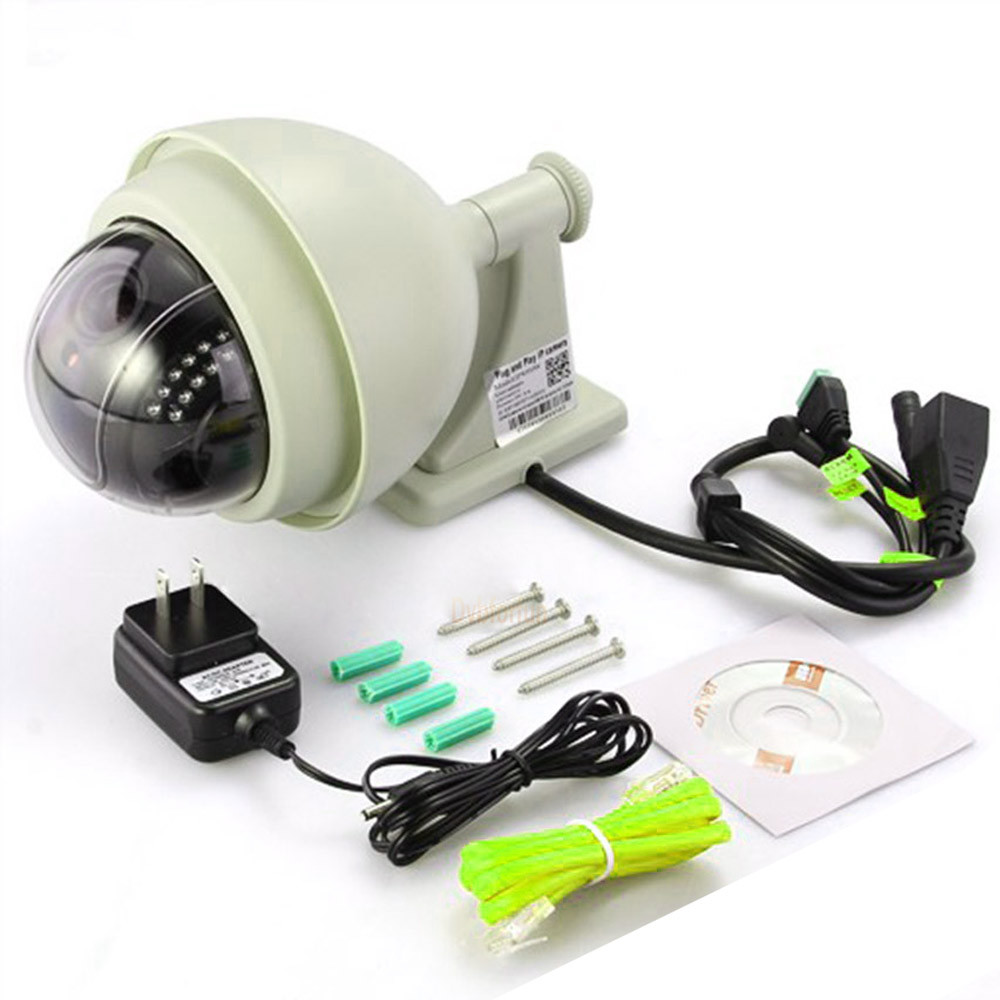

    Accessories	Power adaptor× 1
    	Screw × 1
    	Ethernet Cable  × 1
    	Wi-F antenna × 1
    	CD × 1 (Include User manual PDF、Multi-channel surveillance software、Mobile phone browser、Searching tool）
